Wicgtyp

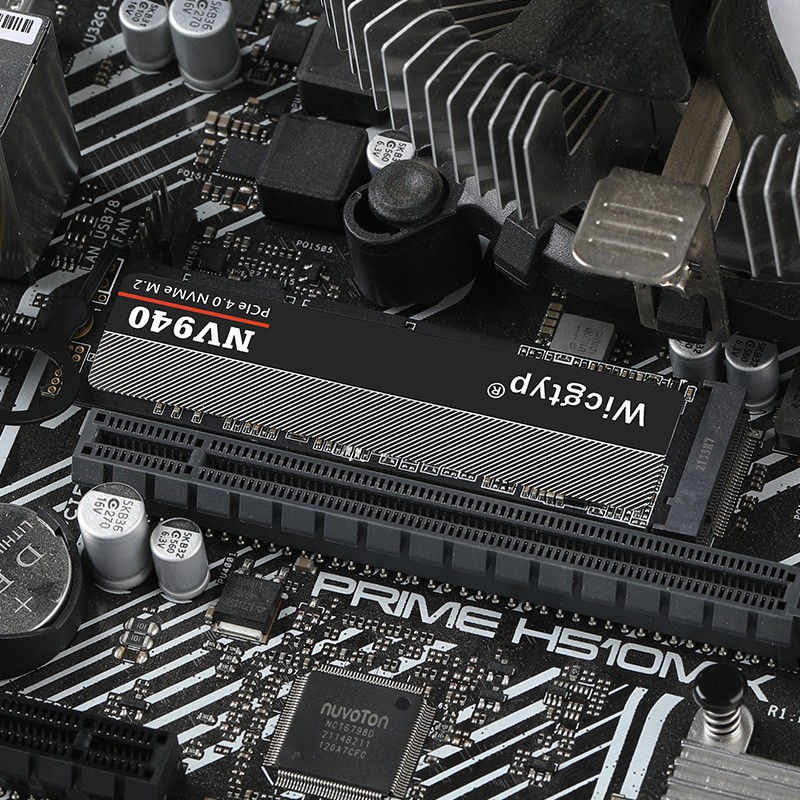

Wicgtyp's first PCIe 4.0 solid-state drive product, NV940 series M.2 PCIe SSD adopts 12nm high-performance main control chip with 8 NAND channels, supports NVMe 1.4 protocol, and the theoretical bandwidth of data transmission interface is nearly 8GB/s (PCIe Gen4 *4 The interface rate is 7.877GB/s).
The flash memory of the NV940 series M.2 PCIe SSD adopts high-density, large-capacity 3D TLC particles realized by advanced packaging technology.

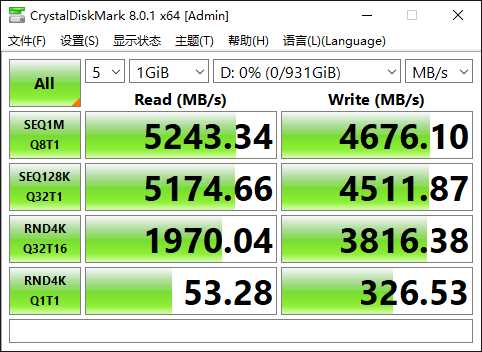

The measured Read speed: 5240MB/S, write speed: 4600MB/S¡£
This series of products will provide at least four capacity versions of 512GB, 1TB, 2TBfor users to choose from, and all provide a 3-year warranty. In terms of low-power and energy-saving management, the NV940 M.2 PCIe SSD implements different levels of low-power modes through the IPMU, an intelligent power management unit. For example, it can support the Modern Standby (PS0) low power consumption mode, which can effectively prolong the battery life of the laptop and shorten the wake-up time, and support the PS3/PS4 low power consumption mode: PS3<50mW, PS4<2mW. In terms of data integrity protection, NV940 M.2 PCIe SSD adopts advanced error correction algorithm 4K LDPC and programmable RAID ECC check algorithm to achieve end-to-end data protection and ensure product reliability. To sum up, this series of M.2 PCIe SSD products has both super performance and reliability, and has a large storage capacity. It is very suitable for loading large-capacity office software or game software. It can improve the speed of game loading, software running, and system startup. It is very helpful. It is an ideal storage device for high-end gaming laptops and desktops, and can also be used as a high-speed system disk for servers. |
